When buyers compare charging cables, they usually look at charging wattage, cable length, connector type, data speed, and price. Few people think about the tiny metal contacts inside the connector.
Yet USB connector pins are one of the most important interfaces between a cable and the device it serves.
Every time you plug a USB-C, USB-A, or Lightning cable into a charger, smartphone, laptop, power bank, vehicle, or docking station, the connector contacts establish the electrical and communication path. Their material, surface finish, geometry, contact force, manufacturing tolerance, and connection to the cable all influence long-term reliability.
This becomes increasingly important as modern charging systems move toward higher current and higher power levels. A USB-C cable designed for demanding applications may need to handle power negotiation, charging current, high-speed data signals, and repeated mechanical insertion without developing unstable contact.
For brands, distributors, wholesalers, and engineering procurement teams, therefore, evaluating a USB-C charging cable requires more than looking at the outside jacket.
The connector is part of the electrical system.
What Are USB Connector Pins?
USB connector pins are the conductive contacts inside a USB connector. They physically mate with corresponding contacts in the receptacle and provide the electrical interface between the cable and connected equipment.
Depending on the connector and cable design, contacts can be used for:
Power delivery
Ground return
Device and charger communication
USB data transmission
High-speed differential signaling
Identification and configuration functions

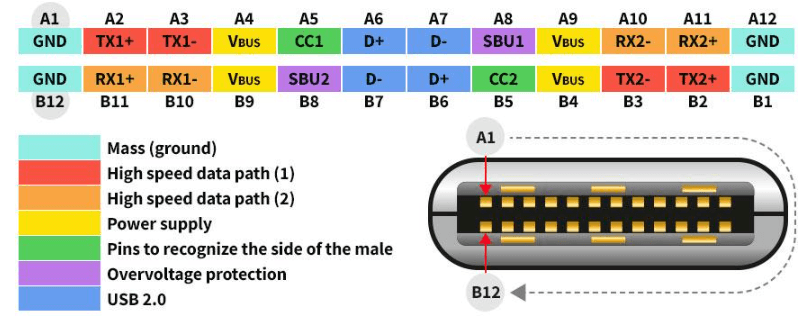

A USB-C connector has a much more sophisticated contact arrangement than older USB interfaces. However, the presence of a USB-C connector alone does not guarantee a specific charging wattage or data speed.
That distinction is important for buyers.
A cable can have a USB-C connector but still be designed primarily for USB 2.0 data, lower charging power, or a specific application. Performance depends on the complete cable construction and the capabilities of the charger and device.
Why the Connector Matters
Electrical current does not travel only through the long copper conductors inside the cable.
It must also pass through the termination between the conductor and connector contact and through the mating interface between the cable and device.
That means the connector introduces another part of the electrical path where resistance, mechanical wear, contamination, or poor manufacturing can affect performance.
For a high-quality fast charging USB-C cable, engineers therefore consider the connector as part of the complete electrical and mechanical system.
Why Phosphor Bronze Is Used for Connector Contacts
One common material used for connector contacts is phosphor bronze.
Phosphor bronze is a copper-based alloy containing tin and a controlled amount of phosphorus. Compared with pure copper, it offers a useful combination of electrical conductivity, mechanical strength, spring characteristics, and resistance to deformation.
This makes it suitable for contact applications where the metal must maintain reliable mating force over repeated use.
Pure Copper vs. Phosphor Bronze
Pure copper has excellent electrical conductivity, but connector contacts also need mechanical performance.
A contact that repeatedly moves, flexes, and mates must maintain its designed shape and contact force.
For this reason, connector engineers often select an alloy rather than using pure copper for the contact spring itself.
| Property | Pure Copper | Phosphor Bronze |
|---|---|---|
| Electrical conductivity | Excellent | Good to very good |
| Mechanical strength | Relatively low | Higher |
| Spring characteristics | Limited for many contact designs | Better suited to contact applications |
| Resistance to deformation | Lower | Higher |
| Connector application | Limited depending on design | Widely used for contacts |
The important point for procurement teams is that connector material cannot be evaluated by conductivity alone.
A connector must balance electrical performance with mechanical durability.
Copper Quality and Electrical Resistance
Copper conductors are widely used because of their electrical conductivity and flexibility.
The quality and construction of the conductor influence:
Resistance
Heat generation
Voltage drop
Charging stability
Mechanical durability
A poorly designed conductor can create greater resistance, particularly under higher current.
As resistance increases, more electrical energy is dissipated as heat.
This is one reason premium USB-C charging cables require appropriate conductor sizing and controlled manufacturing processes.
For bulk buyers, asking about conductor construction is more useful than simply asking whether a cable is “fast charging.”
Cable Length Can Affect Charging Performance
Cable length is another factor that buyers should consider.
As cable length increases, electrical resistance also increases when other factors remain constant.
Longer cables may therefore require:
Appropriate conductor sizing
Better electrical design
Careful connector selection
More rigorous performance testing
For everyday smartphone charging, a 3ft or 6ft cable may be convenient without creating a practical problem when properly engineered.
For higher-power applications, however, cable construction becomes increasingly important.
This is why a 6ft USB-C charging cable designed for higher power should not simply use the same internal structure as a short basic cable.
USB-C to USB-C vs USB-A to USB-C
Connector configuration also affects the available charging architecture.
USB-C to USB-C Cable
USB-C to USB-C cables are widely used for modern USB Power Delivery applications.
They are suitable for:
Smartphones
Tablets
MacBooks
Windows laptops
USB-C monitors
Docking stations
A properly specified USB-C to USB-C charging cable can support higher-power USB PD applications depending on its design and rating.

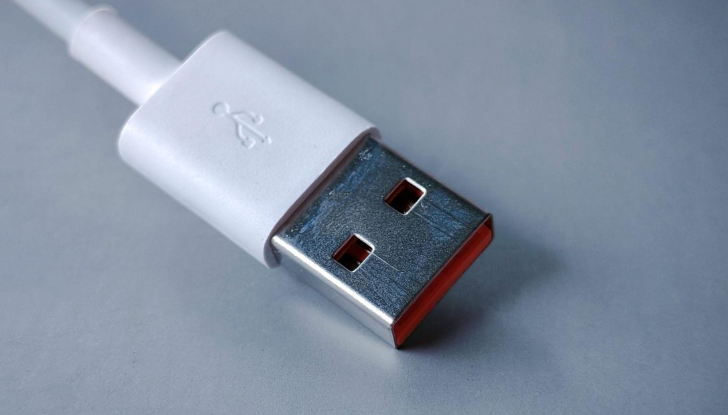

USB-A to USB-C Cable
USB-A to USB-C cables remain useful for:
Older chargers
Vehicles
Legacy computers
Existing USB-A power adapters
However, their charging capabilities depend on the USB-A source, charging protocol and cable design.
It is incorrect to assume that every USB-A to USB-C cable supports the same power level as a USB-C to USB-C PD cable.
For consumers replacing older charging equipment, understanding this distinction can prevent unexpected charging performance.
Charging-Only vs Data-Capable USB-C Cables
Not every USB-C cable provides the same data functionality.
Some cables are designed primarily for charging.
Others support:
USB 2.0 data
USB 3.x data
USB4
Display-related functions
A USB 2.0 USB-C cable can provide up to 480 Mbps under the appropriate USB 2.0 configuration.
Higher-speed cables require additional high-speed signal pairs and much more demanding signal-integrity engineering.
Therefore, a cable marketed for high-speed data should be evaluated separately from its charging rating.
For example, a 100W USB-C charging cable may support only USB 2.0 data while another 100W cable may support much faster data transfer.
Power rating and data speed are separate specifications.
Engineering Case Study: 6FT 60W USB-C Cable for Retail and Automotive Use
A practical cable program illustrates why connector engineering matters.
Consider a retail product designed as a 6FT USB-A to USB-C cable for everyday charging, desk use, and vehicle applications.
The buyer’s requirements were straightforward:
6FT length
USB-A to USB-C connector configuration
60W product positioning
Durable braided exterior
Repeated daily use
Stable charging connection
Retail-ready appearance
The engineering challenge was not simply selecting a connector.
The connector had to work with the internal conductor system, strain relief, braided jacket, termination process, and intended current rating.
From an engineering and procurement perspective, OSKO’s approach is to evaluate the cable as a complete assembly.
The connector design is considered together with:
Contact material → plating → terminal structure → conductor termination → strain relief → cable jacket → electrical testing → production consistency
This matters particularly for 6FT cables because longer cable assemblies introduce additional conductor resistance compared with shorter versions.
For a retail buyer, the target is not simply “a gold connector.”
The target is a cable that maintains the intended electrical and mechanical performance across production batches.
For an OEM or private-label program, this approach also allows the connector specification to be aligned with the buyer’s application, target price, durability requirements, and packaging position.
How to Choose a USB-C Charging Cable for Wholesale or OEM
For retailers, distributors, and importers, connector specifications should be part of the supplier qualification process.
Ask your USB-C cable manufacturer these questions:
What is the contact base material?
Do not accept only “premium metal.”
Ask whether the contact uses phosphor bronze or another specified alloy.
What is the plating material?
Ask whether the mating surface is gold plated and request the relevant specification where necessary.
What is the cable’s rated charging capability?
Do not confuse connector plating with charging power.
A 60W, 100W, or 240W claim should be supported by the complete cable design and applicable testing.
Does the cable use an E-Marker?
Not every USB-C cable needs an E-Marker.
For higher-current USB-C applications, especially cables designed for 5A operation and USB PD Extended Power Range applications, the appropriate electronic identification and cable construction are important.
How is the connector tested?
A serious supplier should be able to explain its quality-control process.
Depending on the product, this may include:
Continuity testing
Resistance testing
Charging-function testing
Data testing
Connector insertion/removal testing
Pull testing
Bend testing
Appearance inspection
Batch quality inspection
USB-C Cable Buying Intent in the US, Germany, Australia and the Netherlands
Different markets may use different search phrases, but the underlying purchasing requirements are similar.
| Market | Common Search Intent | Buyer Focus |
|---|---|---|
| United States | USB-C cable wholesale, fast charging USB-C cable, USB-C cable supplier | Price, compatibility, reliability, MOQ |
| Germany | USB-C Ladekabel, USB-C Kabel Großhandel, Schnellladekabel USB-C | Technical specifications, quality, compliance |
| Australia | USB-C charging cable, braided USB-C cable, USB-C cable wholesale Australia | Durability, travel, automotive, retail |
| Netherlands | USB-C kabel, USB-C snellaadkabel, USB-C kabel groothandel | Product specifications, sustainability, wholesale |
For B2B buyers, the search often moves beyond “cheap USB cable.”
Commercial searches increasingly focus on high quality USB-C charging cables, private-label production, consistent specifications, bulk pricing, OEM packaging, and reliable manufacturing.
That creates an opportunity for manufacturers that can explain the engineering behind the product rather than competing only on price.
Selection Guide: What Should Buyers Check?
Before purchasing a USB-C charging cable for retail or wholesale, review these areas:
Connector material
Confirm the base contact material and surface finish.
Charging capability
Verify the actual rated power and current rather than relying on generic “fast charging” language.
Cable construction
Check conductor design, insulation, shielding, jacket material, and strain relief.
Connector termination
Ask how the connector is attached to the conductors and how the joint is tested.
Data performance
If data transfer matters, verify the actual USB data specification.
Durability testing
Request mechanical test information for insertion, bending, pulling, and repeated use.
Quality consistency
For wholesale orders, confirm how incoming materials and finished cables are inspected.
Customization capability
For private-label programs, confirm logo, color, connector housing, packaging, MOQ, and sample approval procedures.
FAQ
Do gold-plated USB connector pins improve charging speed?
Not automatically. Gold plating primarily helps provide a stable, corrosion-resistant contact surface. Actual charging speed depends on the charger, device, cable rating, protocol, conductor resistance, connector design, and other system factors.
Are phosphor bronze pins better than pure copper?
For many connector-contact applications, phosphor bronze provides a useful balance of conductivity, strength, and spring performance. Pure copper has higher conductivity but is softer, so the appropriate material depends on the connector design.
Does a gold-plated USB-C cable support 240W charging?
No. Gold plating alone does not determine power capability. A 240W USB-C cable requires an appropriate cable design, current rating, power-delivery implementation, and supporting equipment.
Do all USB-C cables need an E-Marker?
No. E-Marker requirements depend on the cable’s electrical and functional specification. Buyers should verify the cable’s current and power rating instead of assuming every premium USB-C cable requires one.
Can connector pins cause a USB-C cable to charge slowly?
They can contribute to poor charging performance if the contact interface has excessive resistance, poor contact force, contamination, or mechanical degradation. However, slow charging can also result from the charger, device, cable conductors, protocol negotiation, or temperature.
Why does my USB-C cable keep disconnecting?
Possible causes include worn connector contacts, poor mating, damaged receptacles, weak termination, internal conductor damage, contamination, or a cable that does not meet the required data or power specification.
Are gold-plated contacts more durable?
Gold plating can improve resistance to surface oxidation and corrosion. Durability still depends on plating thickness, base material, contact geometry, mechanical design, and how the connector is used.
Is a braided USB-C cable automatically better?
No. Braided nylon mainly relates to mechanical protection and exterior durability. Electrical performance depends on the complete internal design, connector, conductors, shielding, termination, and testing.
What should wholesalers ask a USB-C cable manufacturer?
Ask about contact material, plating, cable construction, charging rating, data specification, E-Marker requirements, testing, MOQ, customization, sample approval, packaging, and quality-control procedures.
What makes a high-quality USB-C charging cable?
A high-quality cable combines appropriate connector materials, reliable contact design, suitable conductors, effective strain relief, correct power and data specifications, controlled manufacturing, and consistent testing.
Summary
USB connector pins may be only a small part of a charging cable, but they form one of the critical physical interfaces in the complete electrical system.
Phosphor bronze can provide the mechanical characteristics needed for repeated connector mating, while an appropriate plated contact surface can help maintain reliable electrical contact and resist surface degradation.
However, connector material alone does not determine charging speed.
For modern USB-C applications, performance depends on the complete system:
Connector + conductors + termination + protocol + charger + device + cable design + testing
This is especially important when sourcing fast charging USB-C cables, laptop charging cables, automotive charging cables, and private-label products.
For retailers, distributors, and OEM buyers, the best specification is not simply “gold-plated.”
It is a complete, measurable cable specification backed by controlled manufacturing and testing.
