USB-C, also known as USB Type-C, is a modern universal connector standard widely used in smartphones, tablets, laptops, monitors, gaming devices, and other electronic products.
Unlike older USB connectors such as USB-A and Micro-USB, USB-C features a small reversible design, allowing users to plug the cable in either direction without checking the connector orientation.
Today, USB-C has become one of the most important connection standards in consumer electronics because it supports:
Faster charging
Higher power delivery
Faster data transfer
Video output
Wider device compatibility
From smartphones and tablets to laptops and professional equipment, USB-C is replacing many previous connector types and becoming the preferred interface for modern electronic devices.
What Does USB-C Mean?
USB-C refers to the physical connector design defined by the USB Type-C specification.
It describes the shape and structure of the connector, not necessarily the charging speed or data transfer speed.
This means two USB-C cables may look identical but perform differently depending on their internal design and supported standards.
For example:
A USB-C cable may support:
USB 2.0 data transfer
USB 3.2 high-speed data
USB4
Thunderbolt compatibility
60W charging
100W charging
240W charging
Therefore, choosing the right USB-C cable depends on the actual application requirements.

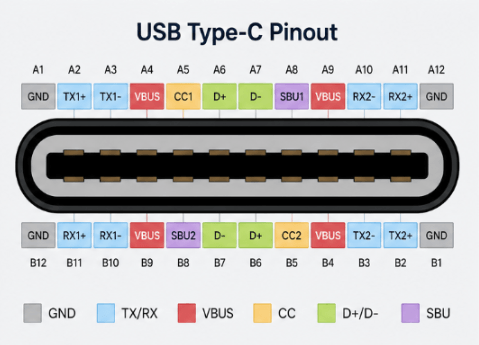

How Does a USB-C Connector Work?
A USB-C connector contains multiple pins designed to support power delivery, data communication, and advanced functions.
The internal structure includes:
1. USB Data Transmission Pins
USB-C includes high-speed differential signal lines used for data communication.
These allow devices to transfer:
Files
Photos
Videos
Backup data
Depending on the cable specification, USB-C can support different transfer speeds.
Examples:
USB 2.0: up to 480 Mbps
USB 3.2: up to 20 Gbps
USB4: up to 40 Gbps
2. CC (Configuration Channel) Pins
The CC pins are one of the most important improvements of USB-C.
They help devices identify:
Cable orientation
Power requirements
Charging capability
Connection status
The CC channel enables USB Power Delivery (USB PD), allowing compatible chargers and devices to negotiate the correct charging power.
3. SBU (Sideband Use) Pins
SBU pins support alternative functions such as:
Display transmission
Docking stations
Special communication protocols
They are important for advanced USB-C applications
4. Power and Ground Pins
USB-C includes dedicated power and grounding pins designed to support higher current levels.
This allows USB-C cables to deliver much higher charging power compared with older USB standards.
Why Was USB-C Developed?
Before USB-C became popular, electronic devices used multiple connector types.
Common examples included:
USB Type-A
Used mainly for:
Desktop computers
Chargers
USB accessories
The connector was large and could only be inserted in one direction.
Micro-USB
Commonly used for:
Android smartphones
Cameras
Portable devices
Problems included:
Fragile connector design
Incorrect insertion direction
Limited charging capability
Lightning Connector
Previously used mainly on Apple mobile devices.
Although compact and reversible, it was limited to Apple ecosystems.
As devices became more powerful, manufacturers needed a connector that could provide:
Higher charging power
Faster data transfer
Smaller physical size
Universal compatibility
USB-C was developed to solve these challenges.

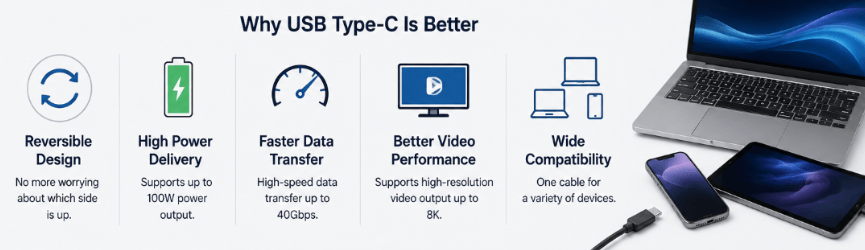

Key Advantages of USB-C
USB-C provides several major improvements compared with previous USB connectors.

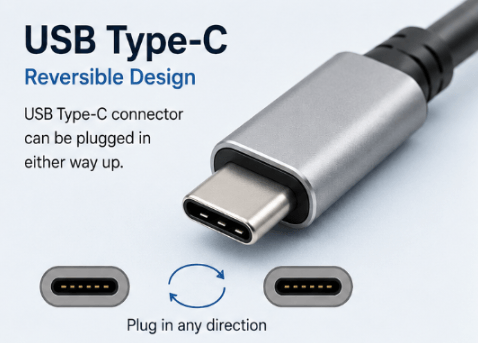

1. Reversible Connector Design
The most noticeable advantage of USB-C is its reversible plug.
Users can insert the connector:
Upward
Downward
without checking the direction.
Benefits include:
Easier daily use
Less connector damage
Better user experience
This improvement made USB-C much more convenient compared with Micro-USB and USB-A.
2. Faster Charging Capability
USB-C supports advanced charging technologies such as:
USB Power Delivery (USB PD)
Programmable Power Supply (PPS)
Modern USB-C charging can support:
20W smartphone charging
45W tablet charging
65W laptop charging
100W professional charging
Up to 240W Extended Power Range charging
This allows one USB-C charger to power multiple types of devices.
For example:
A single 100W USB-C charger can charge:
Smartphone
Tablet
Laptop
Portable monitor
3. Higher Data Transfer Speeds
USB-C supports significantly faster data transfer than traditional USB connectors.
Depending on the USB standard, users can transfer:
Large video files
Professional photography files
Game data
Device backups
However, it is important to understand:
The connector type does not determine speed.
The cable specification determines performance.
A USB-C cable with USB 2.0 technology will not transfer data at USB4 speeds.
4. Video Output Support
One major advantage of USB-C is support for video transmission.
Compatible USB-C ports can connect devices to:
External monitors
TVs
Projectors
Docking stations
Technologies include:
DisplayPort Alternate Mode
Thunderbolt compatibility
This makes USB-C popular for laptops and professional workstations.
USB-C vs USB-A: What Is the Difference?
| Feature | USB-C | USB-A |
|---|---|---|
| Connector Shape | Small reversible | Large one-direction |
| Charging Power | Higher | Lower |
| Data Speed | Faster options available | Limited |
| Device Compatibility | Modern devices | Older devices |
| Video Support | Available | Limited |
USB-C is designed for the next generation of electronics, while USB-A remains common in older computers and accessories.

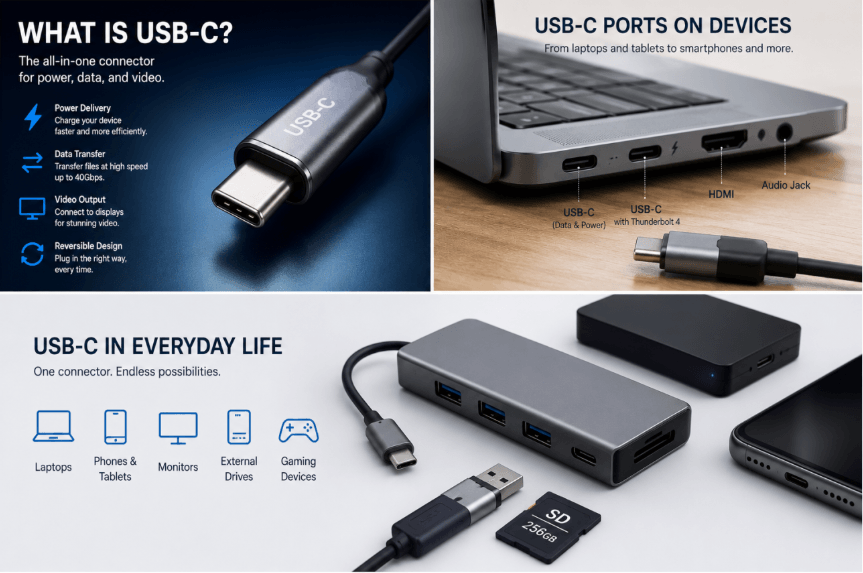

What Devices Use USB-C?
USB-C is now widely used across many categories.
Smartphones
Examples include:
Android smartphones
Modern iPhones
Foldable phones
Tablets
USB-C is commonly found on:
iPad models
Android tablets
Professional tablets
Laptops
Many modern laptops use USB-C for:
Charging
Data transfer
External displays
Examples:
MacBook
Dell laptops
Lenovo ThinkPad
HP laptops
Other Devices
USB-C is also used in:
Gaming handhelds
Wireless headphones
Power banks
Digital cameras
Monitors
Automotive accessories
Is USB-C the Same as Fast Charging?
No.
USB-C is the connector standard, while fast charging depends on:
Charger output
Device compatibility
Cable specification
For example:
A USB-C cable may support only 60W charging, while another USB-C cable may support 100W or 240W charging.
For high-power charging, users should check:
USB PD support
Cable current rating
E-marker chip availability
Why Are More Devices Switching to USB-C?
The transition to USB-C is driven by several factors.
Universal Compatibility
Consumers can use fewer cables and chargers.
One USB-C charger can support multiple devices.
Environmental Benefits
Reducing different charging standards helps:
Reduce electronic waste
Simplify accessory management
Extend product usability
Industry Standardization
Major technology companies have increasingly adopted USB-C because it provides a common charging and connection solution.
The European Union also introduced regulations requiring many electronic devices sold in Europe to use USB-C charging interfaces beginning in 2024, accelerating global adoption.
How to Choose the Right USB-C Cable?
When purchasing a USB-C cable, consider the following factors:
1. Charging Power
Choose based on your device requirements.
Examples:
Smartphones: 20W–45W
Tablets: 30W–60W
Laptops: 65W–140W
2. Data Transfer Speed
Check whether you need:
Basic charging
File transfer
High-speed video workflow
3. Cable Quality
A reliable USB-C cable should include:
Quality copper conductors
Durable connectors
Proper insulation
Safety testing
4. Application Requirements
Different industries require different cable designs.
Examples:
Retail accessories
OEM products
Automotive cables
Industrial applications
USB-C Cable Manufacturing and OEM Solutions
As USB-C adoption continues worldwide, businesses increasingly require customized cable solutions.
Professional USB-C cable manufacturers provide:
Custom cable lengths
Custom materials
Charging specifications
Private label branding
Retail packaging
Bulk production
OEM USB-C cable solutions help brands create products tailored to specific markets.
Applications include:
Consumer electronics
Mobile accessories
Corporate gifts
Retail products
Professional equipment
Frequently Asked Questions About USB-C
What is USB-C used for?
USB-C is used for charging, data transfer, and video connections across smartphones, tablets, laptops, and other electronic devices.
Is USB-C faster than USB-A?
Yes, many USB-C implementations support faster charging and higher data transfer speeds than traditional USB-A connections.
Does USB-C charge faster?
USB-C can support faster charging when combined with USB Power Delivery and compatible chargers.
Are all USB-C cables the same?
No. USB-C cables differ in:
Charging power
Data speed
Material quality
Internal structure
Can USB-C replace HDMI?
In some cases, USB-C can transmit video through DisplayPort Alternate Mode or Thunderbolt, but compatibility depends on the device.
Conclusion: USB-C Is the Future of Universal Connectivity
USB-C has transformed the way modern devices connect and charge.
Its reversible design, higher charging capability, faster data transfer, and broad compatibility make it the preferred connector standard for today’s electronics industry.
For consumers, USB-C means simpler charging and better compatibility.
For businesses, USB-C creates opportunities for developing advanced charging accessories, OEM cable solutions, and customized products for global markets.
As more devices continue adopting USB-C technology, reliable and professionally manufactured USB-C cables will remain an essential part of the connected world.
