Introduction: Why USB Type-C Pinout Matters
Have you ever marveled at the sleek, reversible design of a USB Type-C connector? Beyond its convenient flip-and-go design, USB-C is a high-performance connector supporting fast charging, high-speed data transfer, and multiple protocols like Thunderbolt, DisplayPort, and USB Power Delivery (PD).
Understanding the USB-C pinout is essential for engineers, device designers, and tech enthusiasts to ensure proper functionality, compatibility, and safe high-current transmission.
USB-C Connector Overview
USB-C, also called USB Type-C, is a 24-pin universal connector that carries audio, video, data, and power. Its key features include:
Reversible plug design for hassle-free insertion
Support for multiple protocols: USB 3.2, USB4, Thunderbolt 3/4, DisplayPort, HDMI, PCIe
High-power delivery: up to 100W or 5A depending on cable rating
Backward compatibility: works with adapters for USB-A, USB-B, and older standards
The compact 8.4mm × 2.6mm × 6.65mm connector supports both male plugs and female receptacles, ensuring universal compatibility across devices.
USB-C Male vs Female Pinout
USB connectors come in male (plug) and female (receptacle) forms.
Male USB-C plug: Typically found on cables, adapters, and smaller devices like USB drives.
Female USB-C receptacle: Integrated into host devices or hubs, providing a socket for plug insertion.
The pin arrangement is symmetrical, allowing signals to align perfectly regardless of plug orientation. Power pins (VBUS and GND) are doubled for high-current delivery up to 5A.

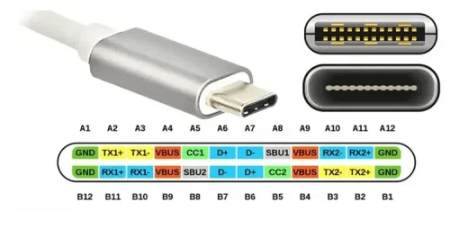

USB-C Pinout Table and Functions
Here’s a simplified overview of key pins:
| Pin | Signal | Function |
|---|---|---|
| A1/B12 | GND | Ground |
| A2/B11 | TX1+/RX1+ | SuperSpeed differential pair 1 |
| A3/B10 | TX1-/TX1- | SuperSpeed differential pair 1 |
| A4/B9 | VBUS | Bus Power |
| A5/B8 | CC1/SBU2 | Configuration channel / Sideband use |
| A6/B7 | D1+/D2- | USB 2.0 differential pair |
| A7/B6 | D1-/D2+ | USB 2.0 differential pair |
| A8/B5 | SBU1/CC2 | Sideband use / Configuration channel |
| A9/B4 | VBUS | Bus Power |
| A10/B3 | RX2-/TX2- | SuperSpeed differential pair 2 |
| A11/B2 | RX2+/TX2+ | SuperSpeed differential pair 2 |
| A12/B1 | GND | Ground |
This pin configuration supports dual high-speed differential pairs, USB 2.0 differential pairs, and sideband use pins (SBU1/SBU2) for auxiliary functions.
How USB-C Pin Connections Work
USB-C cables are designed with mirrored and reversible connections:
- Standard Through Connection: Pins connect directly (D+ to D+, RX to RX, etc.)
- Crossed or Reversed Connection: The cable automatically swaps RX/TX pairs for high-speed data, ensuring reliable performance regardless of plug orientation
For USB 3.2 dual-channel transmission, a multiplexer or chipset ensures correct RX/TX pair routing, dynamically adjusting connections for data and power transfer.
USB 2.0 vs USB 3.x Pin Functions
USB 2.0 mode: Simplified differential pair topology, suitable for longer cables but lower speeds.
USB 3.x mode: Uses SuperSpeed differential pairs for high-speed data and additional power delivery. USB 2.0 pairs may act as backup or auxiliary lines.
Choosing the appropriate module depends on device requirements, cable length, and data transfer speed.
Applications and Advantages of Understanding USB-C Pinout
Knowing the pinout allows users to:
Design custom USB-C cables for specific devices or data protocols
Ensure safe power delivery for high-current applications
Troubleshoot data or charging issues in advanced setups
Utilize fast charging (PD 3.0/4.0) and high-speed data transfer effectively
